OMD-190 Panel Mount Oxygen Analyzer
Description
The OMD-190 online oxygen analyzer with its small, panel mount design and remote sensor housing is is designed to measure oxygen from 0.01 parts-per-million up to 100%. The unit combines an advanced set of electronic features including a smart MENU interface with our industry leading precision electrochemical oxygen sensor technology. The result is a highly reliable and cost effective design with easy-to-use user interface. Designed for general purpose type installations such as wave solder reflow ovens, helium recovery systems or oxygen injection in fish farms.
- Enclosure Type: Panel Mount Cutout
- Enclosure Material: Rugged Anodized Aluminum
- Sensor Housing: Remote with 72″ Cable
- Standard Ranges: 0 – 10/100/1000/10000 PPM & 25%
- Optional Ranges: 0 – 1/5/10/25 & 100 %
- Range Mode: Auto-Range or Manual Range
- Resolution: 0.01 PPM or 0.01 %
- Input Power: 100 – 240 VAC or 10 – 28 VDC
- Analog Output: 4 – 20mA
- Communication: Bi-Directional MODBUS RS485 ASCII
- Alarms: 2 Fully adjustable Form C relay contacts
The built in smart MENU interface allow the user to fully configure the analyzer through the onboard MENU system. No need for a complicated laptop or other control device to setup the analyzer in the field. The electronics are highly reliable and feature-packed and include 4 – 20mA analog output, RANGE ID 1 – 5VDC output, 2 alarm relay contacts, bi-directional Modbus RS485 ASCII communication protocol, multiple analysis ranges, and a 10 – 28 VDC or 100 – 240 VAC power input.

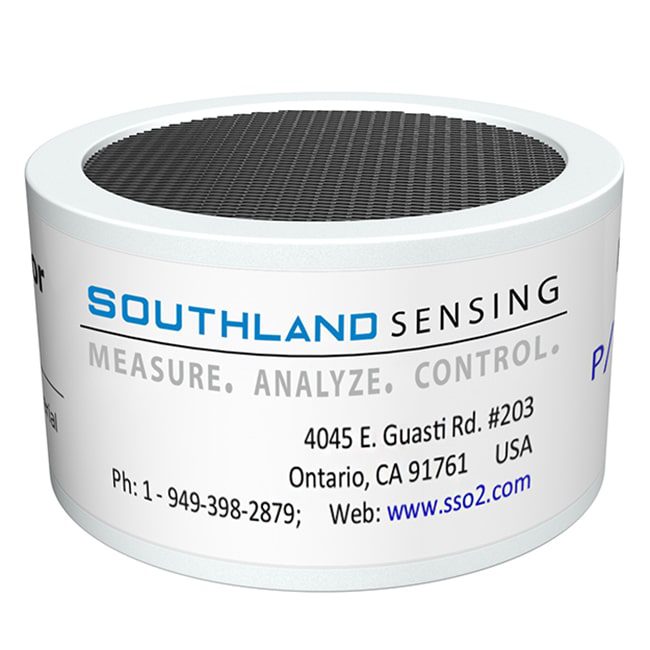

The oxygen sensor is based on the galvanic electrochemical fuel cell principal and is manufactured in house under a strict quality procedure. The sensors are self contained and minimal maintenance is required – no need to clean electrodes or add electrolyte. The precision sensors offer excellent performance, accuracy and stability while maximizing the expected life.
The analyzer comes with multiple ranges from 0 – 10 PPM up to 0 – 100%. Optional sensors can be configured for PPM or Percent oxygen analysis, sensors designed for Inert or CO2 background gases applications are also available.
Sensor housing is remote and includes a 6 foot cable. Optional sensor housings include direct fit KF-40 (inert glove box, NW40F) or flow through housing (6 mm, 1/8″ or 1/4″ compression tube fittings).
Direct Fit Field Replacement
Designed to replace competitive analyzers:
- Teledyne: 3190, 3290
- AII / PST: GPR-1900, GPR-2900
