OMD-525X Wall Mount Outdoor Oxygen Analyzer

Description

Description

The OMD-525X online oxygen analyzer is designed to measure oxygen from 0.01 parts-per-million up to 100%.  The unit combines an advanced set of electronic features including a smart MENU interface with our industry leading precision electrochemical oxygen sensor technology. The result is a highly reliable and cost effective design with easy-to-use user interface.

  • Enclosure Type: Wall Mount; IP66 / NEMA 4X
  • Enclosure Material: Rugged Anodized Aluminum
  • Standard Ranges: 0 – 10/100/1000/10000 PPM & 25%
  • Optional Ranges: 0 – 1/5/10/25 & 100 %
  • Range Mode: Auto-Range or Manual Range
  • Resolution: 0.01 PPM or 0.01 %
  • Input Power: 100 – 240 VAC or 10 – 28 VDC
  • Analog Output: 4 – 20mA
  • Communication: Bi-Directional MODBUS RS485 ASCII
  • Alarms: 2 Fully adjustable Form C relay contacts
  • Data Logging: Removeable USB Flash Drive

The built in smart MENU interface allow the user to fully configure the analyzer through the onboard MENU system.  No need for a complicated laptop or other control device to setup the analyzer in the field.

The electronics are highly reliable and feature packed with a very easy-to-use MENU interface.  Electronic features include 4 – 20mA output, RANGE ID 1 – 5VDC output, 2 alarm relay contacts, multiple ranges and a 10 – 28VDC or 100 – 240V AC power input, and a USB data logging feature.

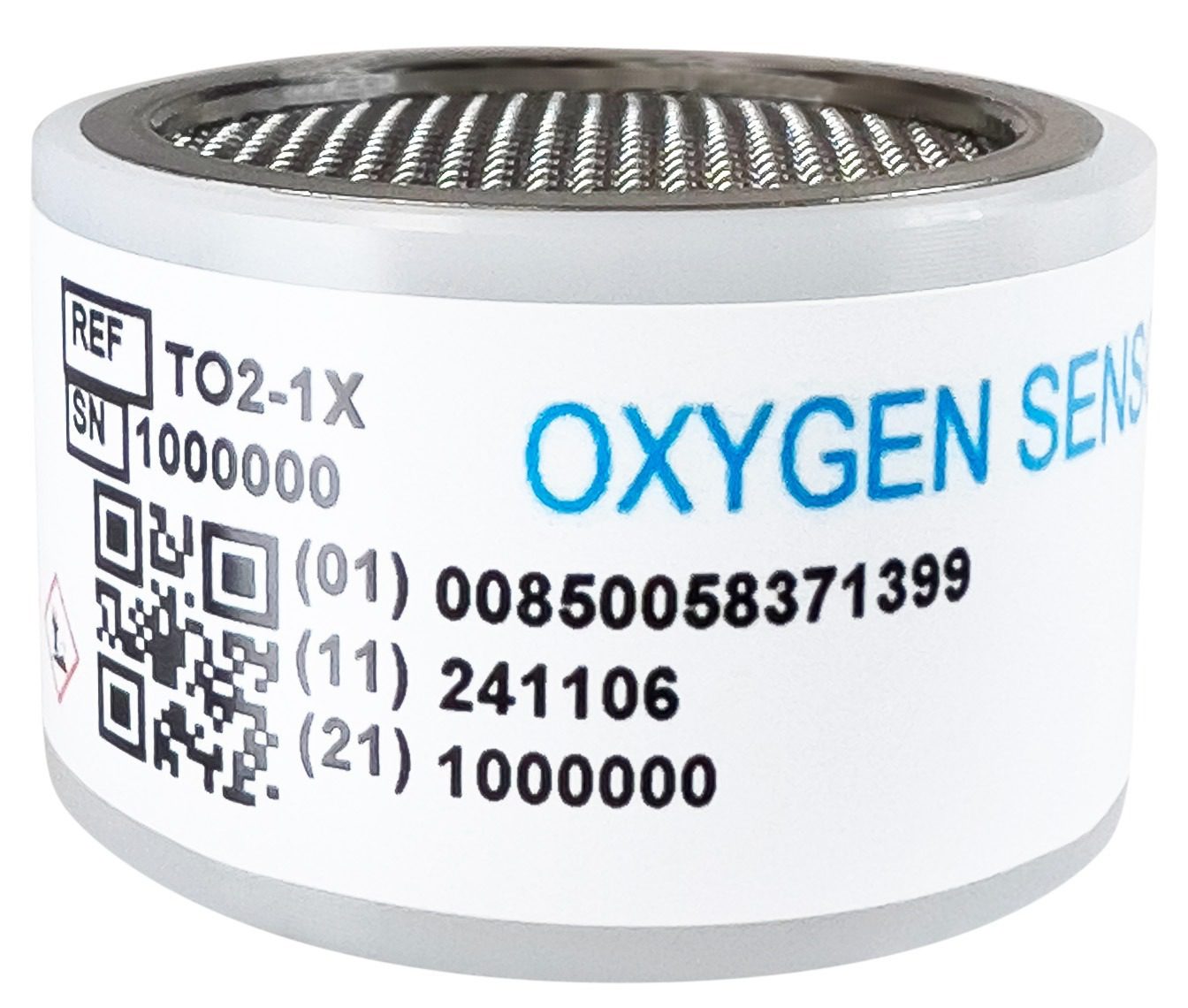

The oxygen sensor is based on the galvanic electrochemical fuel cell principal and is manufactured in house under a strict quality procedure.  The sensors are self contained and minimal maintenance is required – no need to clean electrodes or add electrolyte.  The precision sensors offer excellent performance, accuracy and stability while maximizing the expected life.

The analyzer comes with multiple ranges from 0 – 10 PPM up to 0 – 100%. It can be configured for trace (PPM), percent, or purity oxygen analysis using the onboard menu and appropriate sensor. Sensors designed for acidic/CO2 background gas applications are available as well.

Gas fittings are available as 6 mm, 1/8″ or 1/4″ compression tube fittings.

The highlight of the advanced set of electronics includes a USB output for data logging.  Data logging can be done via a removable USB flash drive and data can be taken in 1 minute intervals.  An 8 GB flash drive can store data for 50+ years.
