H2S-625 H2S Analyzer
ATEX and IECEx Certified for Hazardous Areas

선택 사양:
- Sample System Add-On Components
- Bi-Directional RS485 Modbus RTU
- 극한 기후용 외함
- Extended Temperature Ranges
적용 분야:
- 천연가스 채굴 및 파이프라인
- 천연가스 처리
- 매립지 가스 모니터링
- H₂S 스크러버 전후의 바이오가스
- 기타 다양한 산업 분야
- ATEX / IECEx Certified for Hazardous-Area Applications
- Designed for Natural Gas, Biogas & Industrial H₂S Applications
- 측정 범위: 0–10 PPM부터 0–10,000 PPM H₂S까지
- 정밀 전기화학식 H₂S 센서 기술
- Large Backlit Display with Intuitive Menu Interface
- Two Fully Configurable Alarm Relay Contacts
- Optional MODBUS RS485 RTU Communications
사양:
- 정확도: 전체 범위의 ±1% 미만
- 알람: 설정 가능한 릴레이 접점 2개
- Analyzer Range: Multiple up to 0 - 10000 ppm
- Area Classification: Zone 1 IIB + H2
- 크기: 12″ × 12″ × 5.25″
- Flow: 0.50 - 5.0 SCFH
- Gas Connections: 1/4” Compression Tube
- 출력: 절연형 4–20mA 또는 1–5VDC
- 전원: 12–24 V DC, 100–240 V AC
- 압력: 입구 0.1–50 PSIG, 대기 배출
- 응답 시간: T90 45초
- 샘플 시스템: 선택 사항
- 센서: 정밀 전기화학 셀
- 온도: 0–50 °C
- 센서 보증: 12개월
- 전자장치 보증: 12개월
- 무게: 21 lbs
교차 감도
- 존재하는 가스 100 ppm당 센서 반응:
- 메틸 메르캅탄: 40 ppm
- 일산화탄소: 4 ppm
- 수소: 1 ppm
- 이산화황: 18 ppm
H2S-625 H2S Analyzer | Product Specifications
H₂S 분석기:
The H2S-625 Hydrogen Sulfide Analyzer combines a rugged hazardous-area design with Southland Sensing’s precision electrochemical H₂S sensor technology. Designed for continuous monitoring in natural gas, biogas, and other demanding industrial applications, the analyzer provides reliable H₂S measurement in a compact, easy-to-operate configuration.
The H2S-625 is certified for installation in Zone 1, Group IIB + H₂ hazardous-area environments, making it suitable for applications where third-party certified instrumentation is required.
Both the power input and analog output are electrically isolated, helping prevent ground loops and other electrical interference that can affect signal stability when the analyzer is integrated with plant control and monitoring systems.
Process gas connections are provided through 1/4″ compression tube fittings. The integral sample system includes a Sample/Span selection valve, flow control, and flow indication for straightforward operation, calibration, and maintenance.
Optional bi-directional MODBUS RS485 RTU communications are available for integration with plant control, SCADA, and data acquisition systems.
H₂S 센서 기술:
The H₂S sensor used in the H2S-625 is based on proven electrochemical fuel cell technology and is designed for reliable hydrogen sulfide measurement across a wide range of industrial applications. Southland Sensing H₂S sensors are manufactured under a controlled quality program to provide consistent performance, accuracy, and long-term stability.
독립형 센서는 정기 유지보수가 적으며 전극 세척이나 전해질 보충이 필요 없습니다.
Southland Sensing의 정밀 전기화학식 H₂S 센서 기술은 안정적인 측정, 센서 수명 극대화 및 유지보수 최소화를 위해 설계되었습니다.
전원 요구 사항:
Input Power: 100–240 VAC, 50/60 Hz or 12–24 VDC
DC Current Draw: 50 mA nominal (DC operation)
산소 센서:

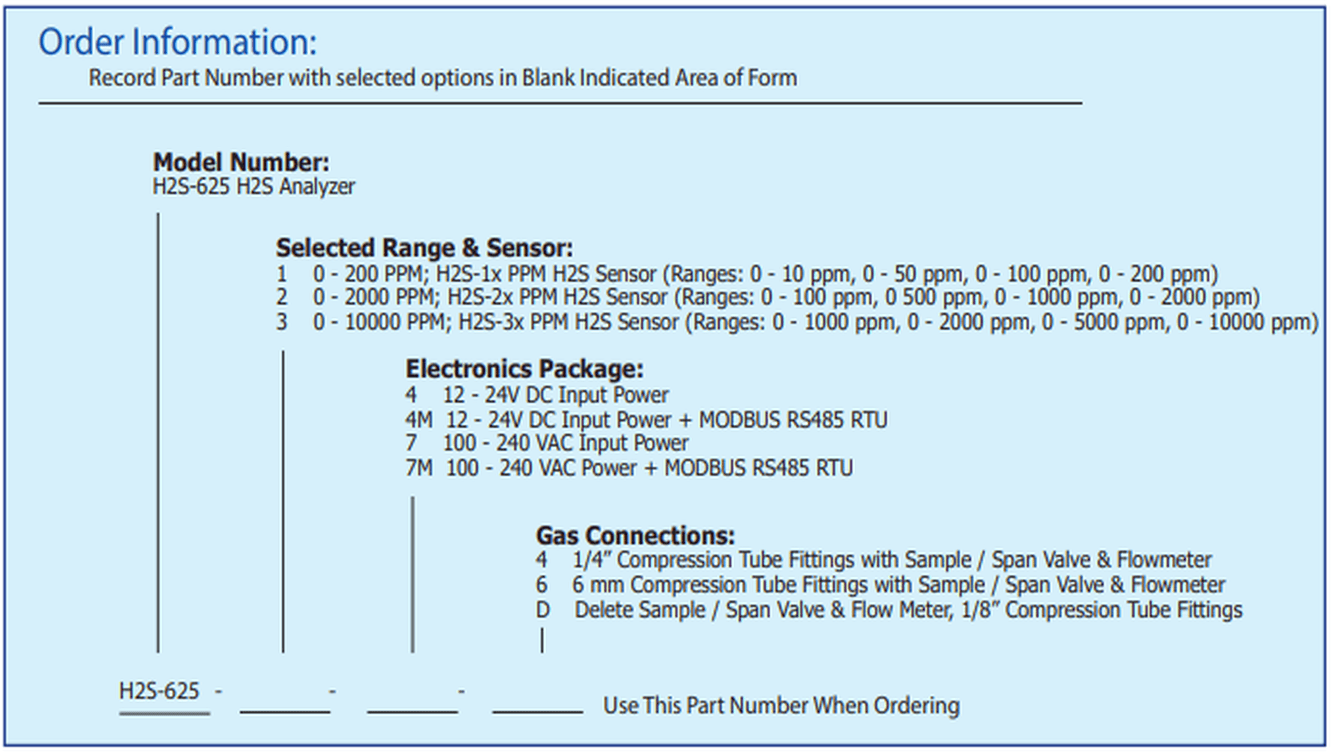

H2S-1x PPM H2S Sensor: 0 – 200 Max PPM Range
H2S-2x PPM H2S Sensor: 0 – 2000 Max PPM Range
H2S-3x PPM H2S Sensor: 0 – 10000 MAX PPM Range
H₂S 센서는 정기적으로 교정해야 합니다. 제조사는 1–3개월마다 또는 용도에 따라 교정할 것을 권장합니다. 인증된 표준 가스로 교정하면 우수한 선형성을 보입니다.
