Trace Oxygen Monitoring in UHP Gas Distribution Pipelines
Continuous Purity Verification Across UHP Gas Distribution Networks — OMD-675

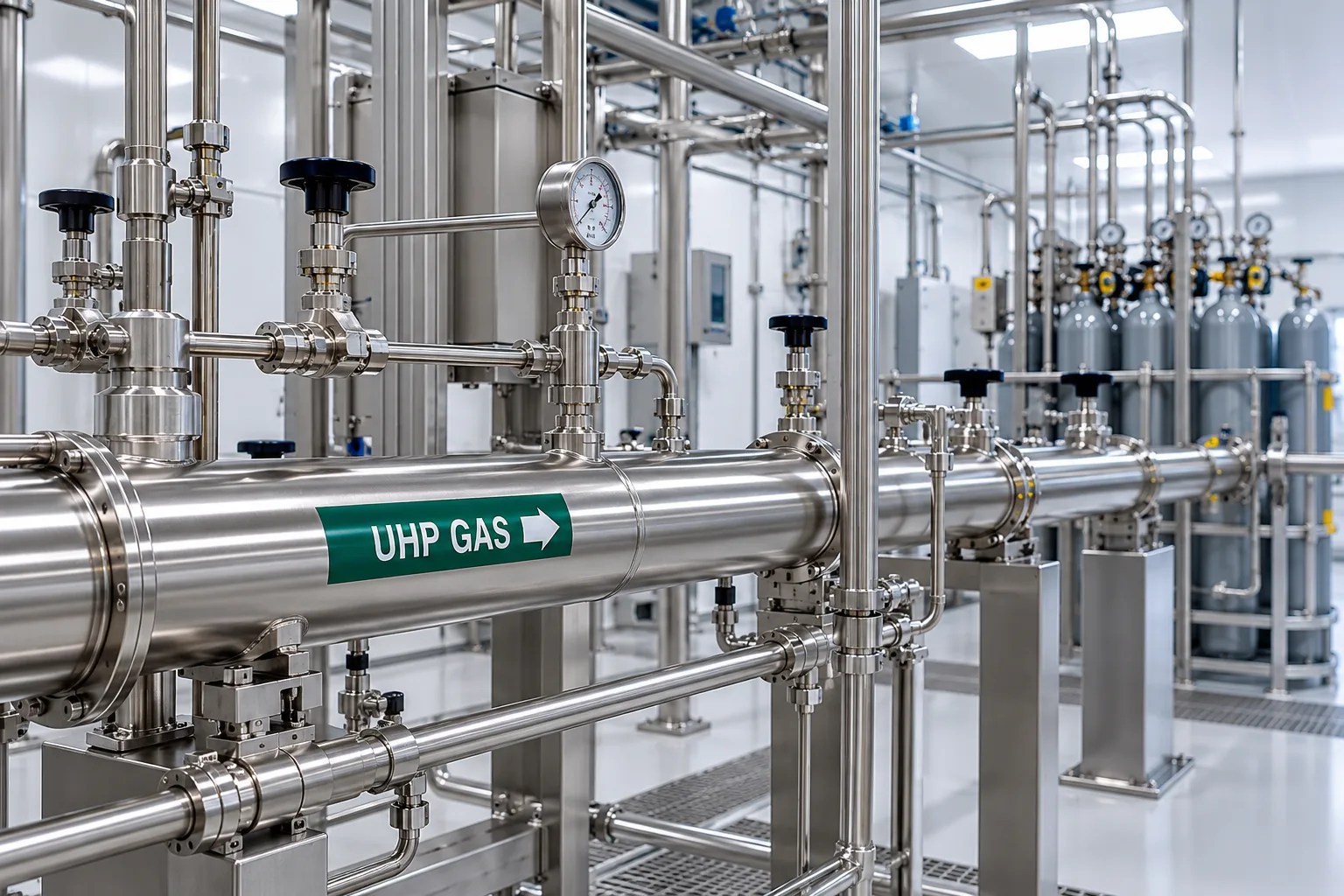

Ultra-high-purity gas distribution pipelines transport nitrogen, argon, and specialty gases throughout manufacturing facilities and industrial gas distribution networks. Gas purity can be compromised by air ingress through leaking fittings, valves, or other connections, making oxygen monitoring important for maintaining stringent purity requirements. Continuous trace oxygen measurement at strategic sampling points helps operators verify gas quality throughout the distribution system.
The OMD-675 trace oxygen analyzer provides continuous, highly sensitive oxygen measurement of sampled gas from UHP distribution pipelines, helping operators detect oxygen contamination, investigate potential leaks, and maintain established gas purity specifications across complex distribution networks.
- UHP Pipeline QC
- Distribution Network Monitoring
- Continuous Online Monitoring
- Sub-PPM Sensitivity
Why UHP Pipeline Monitoring Matters
Maintaining gas purity throughout a UHP distribution pipeline requires careful control of potential contamination sources, including fittings, welds, valves, and connections. Oxygen contamination can be introduced during maintenance, equipment changeovers, inadequate purging, or periods of reduced system pressure. Continuous oxygen monitoring at strategic points along the pipeline helps operators identify changes in gas purity, investigate potential contamination sources, and verify that established purity specifications are maintained throughout the distribution network.
Where It's Used
- Pipeline receipt and delivery points — verifying purity entering and leaving the distribution network
- Long-distance distribution runs — monitoring at intermediate points to localize contamination
- Multi-customer or multi-building distribution — confirming purity at each branch connection
- Pipeline commissioning and leak testing — validating purity before a new segment enters service
Recommended Analyzer
The OMD-675 delivers stable, continuous ultra-trace oxygen measurement suited to the stringent purity requirements of UHP gas distribution systems.
Multiple OMD-675 analyzers can be installed at strategic sampling points, including gas receipt, intermediate distribution, and final delivery locations. When connected to compatible facility monitoring systems, these analyzers provide oxygen concentration data that helps operators track gas purity, identify contamination trends, and investigate potential issues throughout the distribution network.
- Continuous Oxygen Monitoring
- Integral Bypass / Isolation Valve
- 4-20 mA / Digital Output
- 19" Rack Mount Enclosure
Key Specifications
- Range: sub-ppm to low-ppm trace oxygen, matched to UHP distribution specifications
- Sensor technology: stable, low-drift sensor suited to continuous pipeline duty
- Output: 4-20 mA and digital communication for distribution monitoring system integration
- Response time: suited to real-time monitoring across distribution checkpoints
- Enclosure: weatherproof, process-rated housing for pipeline installation
Frequently Asked Questions
The number of oxygen monitoring points depends on the pipeline layout, distribution network complexity, gas purity requirements, and potential contamination sources. Common monitoring locations include the gas supply or receipt point, major distribution branches, and critical points of use. Multiple OMD-675 analyzers can provide continuous oxygen measurements at these locations, helping operators verify gas purity and identify potential contamination sources. Monitoring locations should be selected based on a facility-specific assessment of gas quality requirements and distribution system design.
Yes. By installing OMD-675 analyzers at multiple sampling points along a UHP gas distribution pipeline, operators can compare oxygen concentrations at different locations to help identify where contamination may be entering the system. For example, if oxygen levels remain within specification upstream but increase at a downstream monitoring point, the affected pipeline section can be investigated for potential contamination sources. This approach supports troubleshooting and helps minimize unnecessary inspections across the entire distribution network.
The OMD-675 is designed for installation in a suitable protected environment and should not be exposed directly to outdoor weather conditions. For outdoor UHP gas distribution pipelines, the analyzer can be installed in a properly designed weatherproof or climate-controlled enclosure, with gas routed from the pipeline through an appropriate sampling system. The installation must maintain the analyzer’s specified operating temperature and environmental conditions while protecting the sample from contamination.
NEED HELP SPECIFYING AN ANALYZER FOR YOUR OPERATION?
Our application engineers can help confirm the right model for your process conditions.
