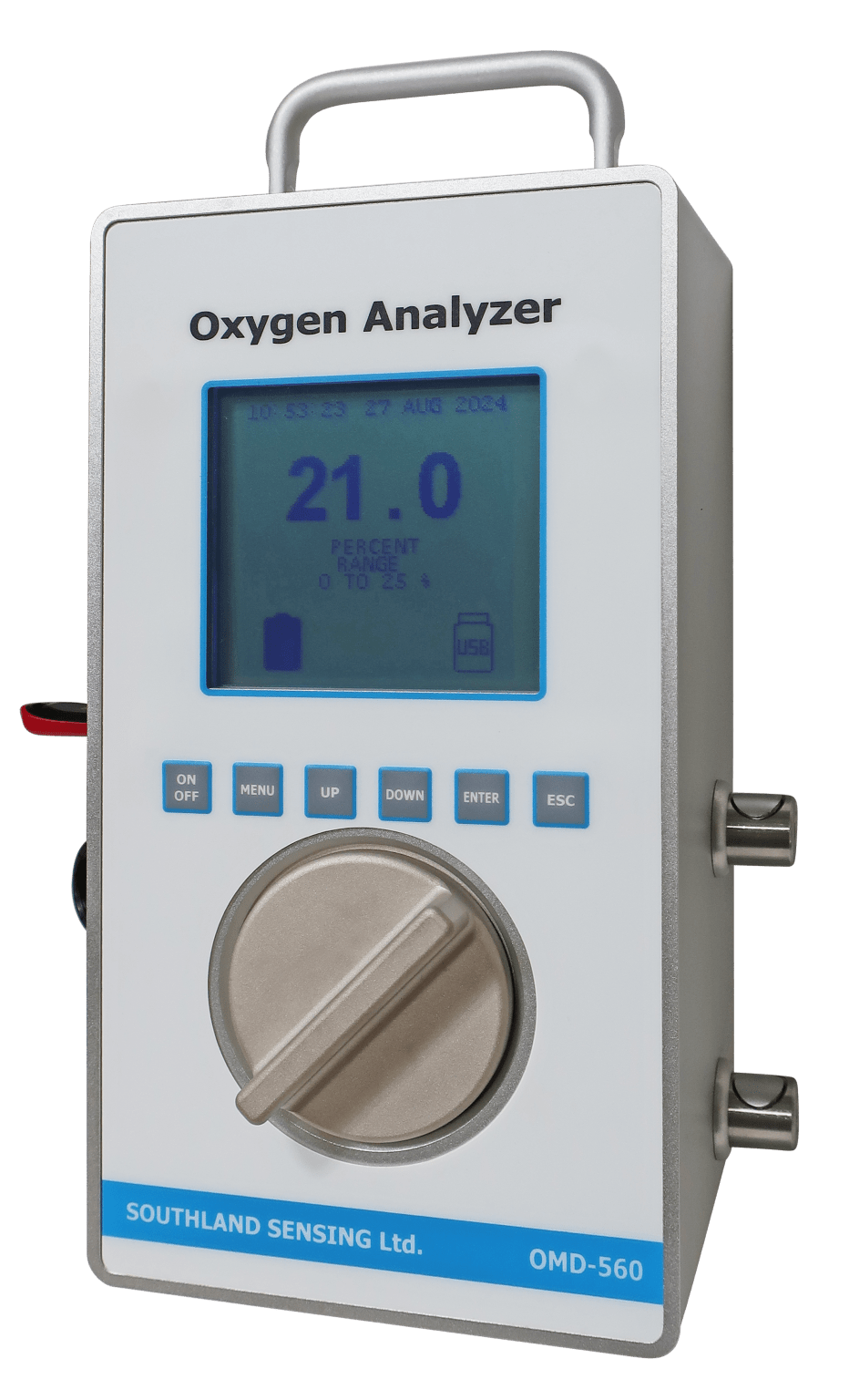

OMD-560 Oxygen Analyzer
Portable PPM Oxygen Analyzer with USB Data Logging

Especificações Técnicas:
- Precisão: < ±1 % da escala total*
- Analysis Range: 0-10/100/1000/10000ppm/25%
- Indicador de bateria: integrado no ecrã grande
- Calibração: periódica
- Registo de dados: pen USB removível
- Dimensions: 12.0 x 6.0 x 5.0 inch
- Ecrã: grande, retroiluminado
- Enclosure: Anodized Aluminum
- Flow Sensitivity: 0.5 - 5 SCFH
- Gas Connections: Quick Disconnect
- Saída analógica: 0–1 V CC
- Power: Rechargeable Battery 100 - 240 VAC AC Adapter
- Pressure: Inlet, 0.1 - 50 PSIG
- Response Time: T90 in 7 Seconds
- Sensor: TO2-133 Trace O2 Sensor
- Sensor Life: 20 - 25 months
- Temperatura: 0–50 °C
- Compensação de temperatura: integrada
- Garantia: 12 meses
- Weight: 5.75 lbs
- 0 - 10 PPM Low Range; 0 - 25% High Range
- Ecrã grande retroiluminado com menus intuitivos
- Registo de dados em pen USB removível
- Quick-Disconnect Isolation Gas Fittings
- Análise contínua durante o carregamento
- Tecnologia de sensor eletroquímico de oxigénio de precisão
The OMD-560 combines a rugged portable design with Southland Sensing’s precision electrochemical oxygen sensor technology for accurate trace oxygen measurement. Designed for field and plant use, the analyzer provides reliable PPM oxygen measurement with a straightforward, easy-to-use interface.
The analyzer features a 0–10 PPM O₂ full-scale low range for demanding trace oxygen applications. A removable USB flash drive provides convenient data logging in .CSV format, allowing recorded measurements to be easily transferred to a computer for review, documentation, or further analysis.
The high-visibility display is designed for readability in direct sunlight, making the OMD-560 well suited for outdoor and field applications.
The OMD-560 utilizes Southland Sensing’s galvanic electrochemical oxygen sensor technology. All oxygen sensors are manufactured in-house under a controlled quality program and are self-contained, requiring minimal routine maintenance with no electrodes to clean or electrolyte to replenish.
Two sensor chemistries are available to accommodate different process gas compositions. The standard TO2-1x sensor is designed for applications containing background gases such as hydrogen, helium, and hydrocarbons. For applications containing acid gases, including carbon dioxide and many natural gas streams, the TO2-2x provides an acid-resistant alternative.
The combination of portable operation, a 0–10 PPM low range, USB data logging, rugged construction, and application-specific sensor options makes the OMD-560 a versatile solution for portable trace oxygen measurement across a wide range of industrial processes.
Aplicações
- Pipeline leak detection
- Spot Checking Air Separation & Liquification
- Headspace Gas Analysis
- Beverage Grade CO2 Monitoring
- Heat Treating & Bright Annealing
- Inert Gas Welding of Exotic Materials
Acessórios opcionais
- ENC-560 Carrying case with foam insert
- TO2-2x Oxygen Sensor (> 0.5% CO2 present)
